Description
Instrument Details
The following table lists the precise specifications for each bur variant, including micron size and diameter — each one mapped to the manufacturer part number and the SKU.
| Manufacturer Part Number | Micron & Coarseness | Length & Diameter | SKU | Availability |
|---|---|---|---|---|
| FG 312N GB/6 | 50 / Golden Burs GB | 10 / 017 | 77312NGB | ✓ Available |
| FG 505 GB/6 | 50 / Golden Burs GB | 10 / 013 | 77505GB | ✓ Available |
| FG 404L/6 | 90-106 / Standard | 10 / 010 | 77404L | ✓ Available |
| FG 9405L/6 | 8 / Ultra fine | 10 / 009 | 779405L | ✓ Available |

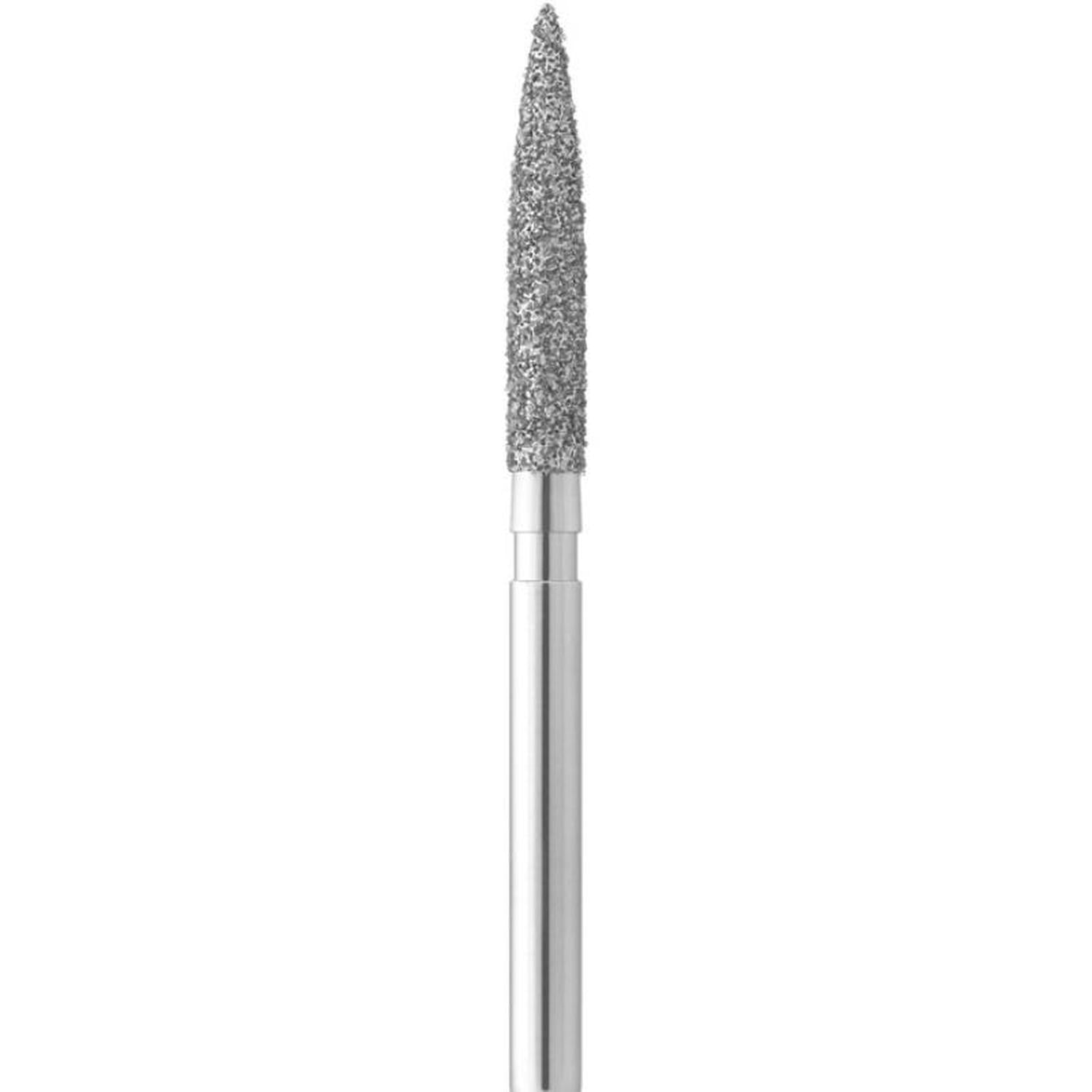

| FG 405L GB/6 | 50 / Golden Burs GB | 10 / 011 | 77405LGB | ✓ Available |

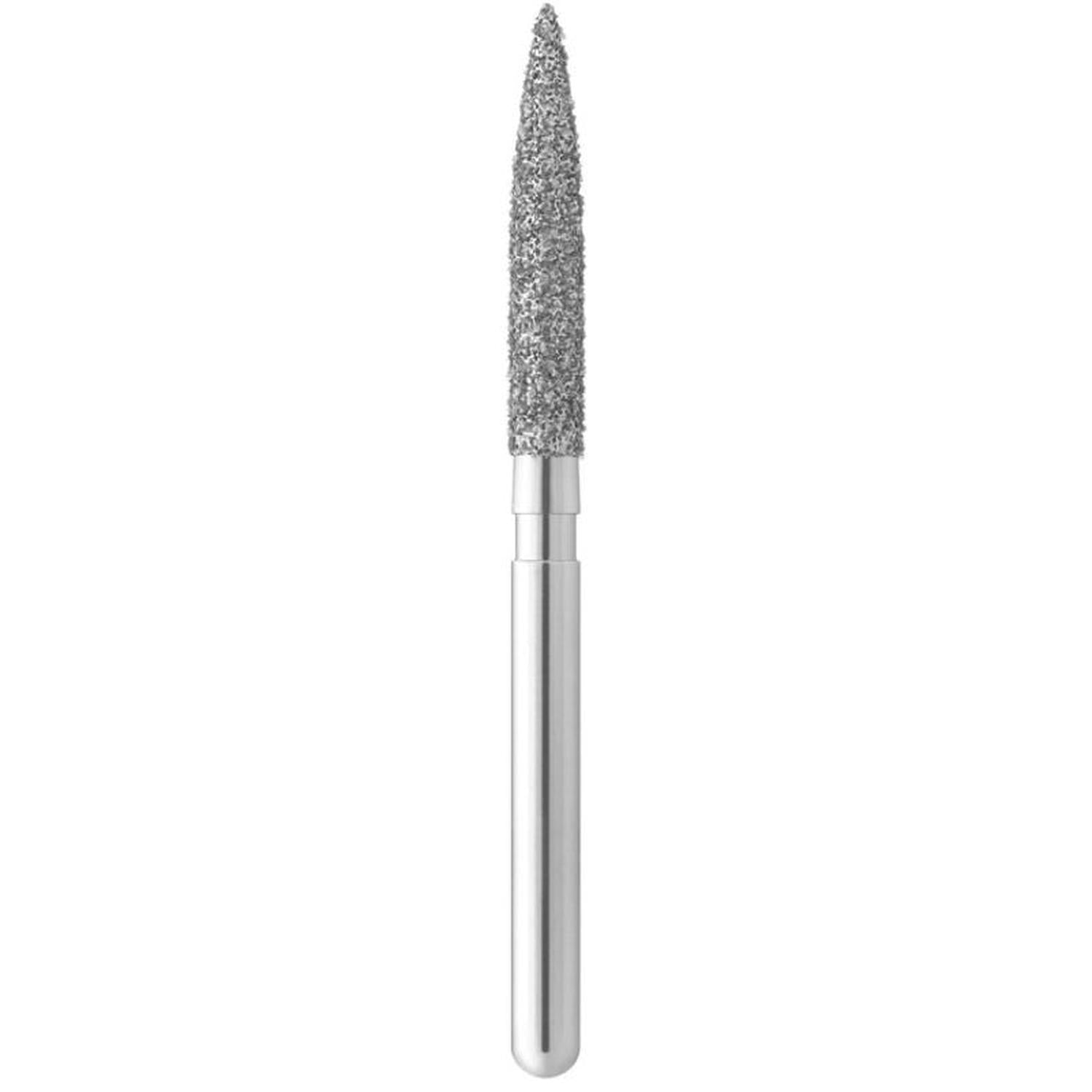

| FG 4405L/6 | 40 / Fine | 10 / 011 | 774405L | ✓ Available |

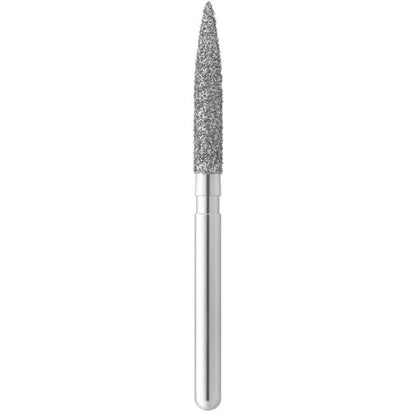

| FG 405L C/6 | 106-125 / Coarse | 10 / 012 | 77405LC | ✓ Available |

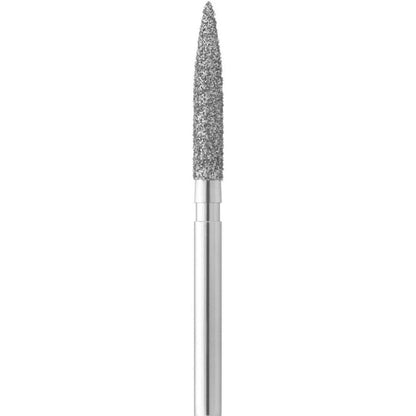

| FG 405L/6 | 90-106 / Standard | 10 / 012 | 77405L | ✓ Available |
| FG 5505/6 | 15 / Extra fine | 10 / 012 | 775505 | ✓ Available |
| FG 4505/6 | 40 / Fine | 10 / 013 | 774505 | ✓ Available |
| FG 9505L/6 | 8 / Ultra fine | 10 / 013 | 779505L | ✓ Available |
| FG 505 C/6 | 106-125 / Coarse | 10 / 014 | 77505C | ✓ Available |
| FG 5312N/6 | 15 / Extra fine | 10 / 016 | 775312N | ✓ Available |
| FG 505/6 | 90-106 / Standard | 10 / 014 | 77505 | ✓ Available |
| FG 3405L/6 | 25 / Fine | 10 / 010 | 773405L | ✓ Available |
| FG 5505L/6 | 15 / Extra fine | 10 / 014 | 775505L | ✓ Available |
| FG 4505L/6 | 40 / Fine | 10 / 015 | 774505L | ✓ Available |
| FG 505L C/6 | 106-125 / Coarse | 10 / 016 | 77505LC | ✓ Available |
| FG 505L/6 | 90-106 / Standard | 10 / 016 | 77505L | ✓ Available |
| FG 8505L/6 | 80 / Medium | 10 / 016 | 778505L | ✓ Available |
| RA 405L/6 | 90-106 / Standard | 10 / 012 | 77405LRA | ✓ Available |
| RA 405L GB/6 | 50 / Golden Burs GB | 10 / 011 | 77405LGBRA | ✓ Available |
| FG 378/6 | 90-106 / Standard | 10 / 021 | 77378 | ✓ Available |
| FG 378 C/6 | 106-125 / Coarse | 10 / 021 | 77378C | ✓ Available |
| FG 312N CB/6 | 125-150 / Super coarse | 10 / 019 | 77312NCB | ✓ Available |
| FG 312N/6 | 90-106 / Standard | 10 / 018 | 77312N | ✓ Available |
| FG 312N C/6 | 106-125 / Coarse | 10 / 018 | 77312NC | ✓ Available |
| FG 4312N/6 | 40 / Fine | 10 / 017 | 774312N | ✓ Available |
| FG 505L GB/6 | 50 / Golden Burs GB | 10 / 015 | 77505LGB | ✓ Available |
| FG 5405L/6 | 15 / Extra fine | 10 / 010 | 775405L | ✓ Available |
